Air-ride Set Chevrolet Corvette C3 79-92

Dedicated to:
Chevrolet Corvette C3 1979-1982





Info:
The PREMIUM VIP set is a digital control system based on a valve manifold and a remote control with a display. It allows you to control each bag separately - no air flows between the cushions! Smooth height adjustment and presets. An interesting aspect is the aesthetic cover masking all connections and easy to modify.

Infinitely adjustable - you can set the car on different levels.




System functions:
- Display of pressures in bags and tank
- Possibility to set 5 heights (by pressure)
- Automatic lifting function after ignition
- Automatic lowering function when ignition off
- Illuminated Keypad
- Android APP
- English language



Included:
- Valve terminal with control unit
- Digital remote control displaying pressures and functions
- Black Piano cover masking the connections
- Tank: 15l (optional other tank)
- Tank brackets
- Compressor VIAIR 380C (optional other VIAIR)
- Pressure switch + Relay
- Aluminum Brackets for Bags
- Dedicated bags
- 6mm air hose: 25m
- metal fittings
- Water trap
- Other metal fittings for tank and bags
- Dampers


Modification of front and rear wishbones required

Other optional features:
- Possible to make set without rear shocks - will be cheaper and faster!



Production time about 1-3 months

Before purchasing ask about availability and waiting time.




The Black Gloss Cover made of ABS offers several options:
- Possibility to rotate the manifold in any direction and the logo will always be in the right direction
- Masks all the connections - electrical and the fittings for airhoses
- Easy possibility of processing plastic - gives an additional option of fitting
- As the cover does not reach the ground, has a minimum clearance - you can use it for an interesting underglow



WARRANTY 24 months!

air-RIDE sets do NOT have certificates and approvals on public roads.

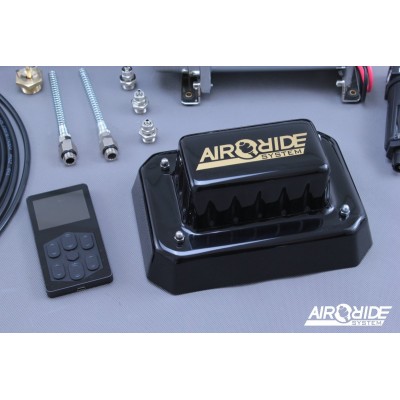

illustrative photo!

Producer: BEST LEVEL Katarzyna Janecka

Information and safety instructions: www.mapet-tuning.com/GPSR/GPSR_airride.pdf
